Product classification:Valve-regulated lead acid battery
Model:

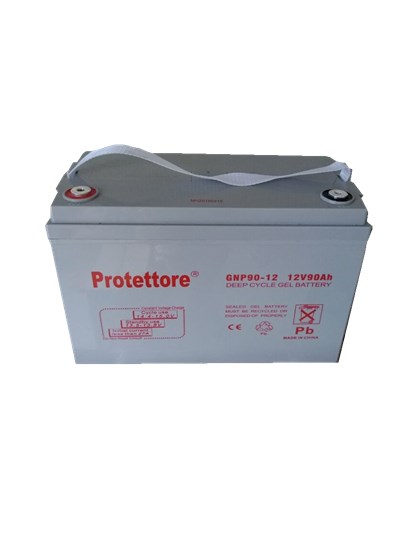

12v90ah gel solar battery
Size: 328*172*214mm
Weight: 30kgs
Battery box: ABS engineering plastic
12v90ah gel type battery for solar system
Nominal voltage |
12 V
|
|
Capacity(20HR, 25 °C ) |
90AH |
|
Dimension |
Length |
328mm (12.09inch) |
Width |
172mm (6.61inch) |
|
Height |
214mm (8.19inch) |
|
Total height |
216mm (8.94inch) |
|
Approx. weight |
28.2kg (63.95lbs) |
|
Internal resistance (Fully charged, 25 ) |
Approx.5m |
|
Capacity affected by temperature (20HR) |
40°C |
102% |
25°C |
100% |
|
0°C |
88% |
|
-15 °C |
68% |
|
Self-discharge (25°C) |
3 month |
Remaining capacity: 92% |
6 month |
Remaining capacity: 85% |
|
12 month |
Remaining capacity: 68% |
|
Operating temperature range |
-10°C~ 60 °C |
|
Float charging voltage(25°C) |
13.60 to 13.80V |
|
Cyclic charging voltage(25°C) |
14.10 to 14.40V |
|
Maximum charging current |
19A |
|
Terminal material |
Copper |
|
Maximum discharge current |
575A(5 sec.) |
