Product classification:UPS battery
Model:

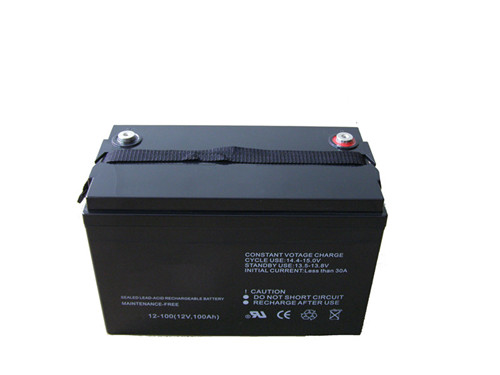

12V100AH Sealed lead acid battery
Size:330*172*214mm
Weight:28.5kgs
Battery plate matrial: Lead calcium alloy
Battery box material: ABS engineering plastic
battery characteristic |
||||
Nominal voltage |
12V |
|||
Nominal capacity(10h rate) |
100Ah |
|||
Size |
Total height |
216mm |
||
|
length |
328mm |
||
|
width |
172mm |
||
|
height |
216mm |
||
Weight |
28.5kg |
|||
Rated capacity 25℃(77℉) |
10 hour rate(10A) |
100Ah |
||
|
|
|
||
|
5 hour rate(15A) |
80Ah |
||
|
1 hour rate(60A) |
60Ah |
||
Internal resistance |
in full charge status 25℃(77℉) |
3mΩ |
||
Capacity at different temperature(10h) |
40℃(104℉) |
102% |
||
|
25℃(77℉) |
100% |
||
|
0℃(32℉) |
85% |
||
|
﹣15℃(5℉) |
65% |
||
Self discharge 25℃(77℉) |
capacity after 3 months |
91% |
||
|
capacity after 6 months |
82% |
||
|
capacity after 12 months |
64% |
||
Mode of charge (constant voltage) 25℃(77℉) |
cycle-use |
initial charging current less than40A , voltage14.10-14.40V |
||
|
float-use |
Initial charging current less than 15A voltage13.50-13.80V |
