Product classification:UPS battery
Model:

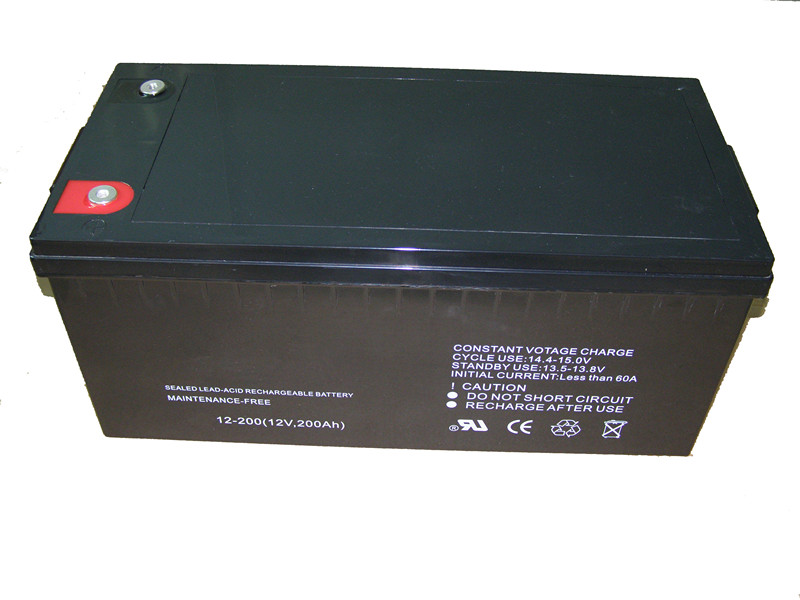

12v200ah gel solar battery
Size:522*239*218mm
Weight:60kgs
Model: NP12200
Description of 12v200ah battery
Advantage
1.The battery is full of power when it’s out of factory, no need to use liquid charge;
2.no memory, no need to discharge battery use, suitable for circuit design;
3.by high partition, adsorption and strong;
4.there is no flowing liquid (poor liquid), does not leak acid and free Upside down,
5.comply with environmental requirements, ease of use,
6.the use of lead-calcium alloys, battery self-discharge is very low,
7.easy storage, less maintenance;
8.using ABS plastic shell and valve technology for safe use.
Application
The VRLA battery 12v200ah can be used in UPS, light, magnetic lifting equipment ,EPS,solar system and so on.
battery characteristic |
||||
Nominal voltage |
12V |
|||
Nominal capacity(10h rate) |
200Ah |
|||
Size |
Total height |
224mm |
||
|
length |
522mm |
||
|
width |
172mm |
||
|
height |
218mm |
||
Weight |
74kg |
|||
Rated capacity 25°C(77°F) |
10 hour rate |
200Ah |
||
|
|
|
||
|
5 hour rate |
180Ah |
||
|
1 hour rate |
160Ah |
||
Internal resistance |
in full charge status 25°C(77°F) |
3.2mΩ |
||
Capacity at different temperature(10h) |
40°C(104°F) |
102% |
||
|
25°C(77°F) |
100% |
||
|
0°C(32°F) |
85% |
||
|
-15°C(5°F) |
65% |
||
Self discharge 25°C(77°F) |
capacity after 3 months |
91% |
||
|
capacity after 6 months |
82% |
||
|
capacity after 12 months |
64% |
||
Mode of charge (constant voltage) 25°C(77°F) |
cycle-use |
initial charging current less than16.5A , voltage14.10-14.40V |
||
|
float-use |
No limit on Initial charging current voltage13.50-13.80V |
Notice
1 Don’t near the hot source and don’t under the sunshine.
2 Don’t charge in the sealed container.
3 No short circuit. It should be addition charge if you don’t use, and single charge per three months, to avoid irreversible sulfating. The battery should be changed when the battery jar broken or the electrolyte omitted, to avoid acid corrosion.
4 Don’t store in the space of acid gas.
5 You should be careful and regular check when use the battery. To avoid the battery don’t work. You should change the battery if the capacity is not full or has been damage, especially after one year using.
6 Don’t put the battery in the fire, or it will explode.
7 Please use cotton cloth to clean, if the battery is broken down and leak electrolyte. Please wash your skin when touch the electrolyte.
8 Don’t clean the battery by using the organic solution. (e.g. petrol)
